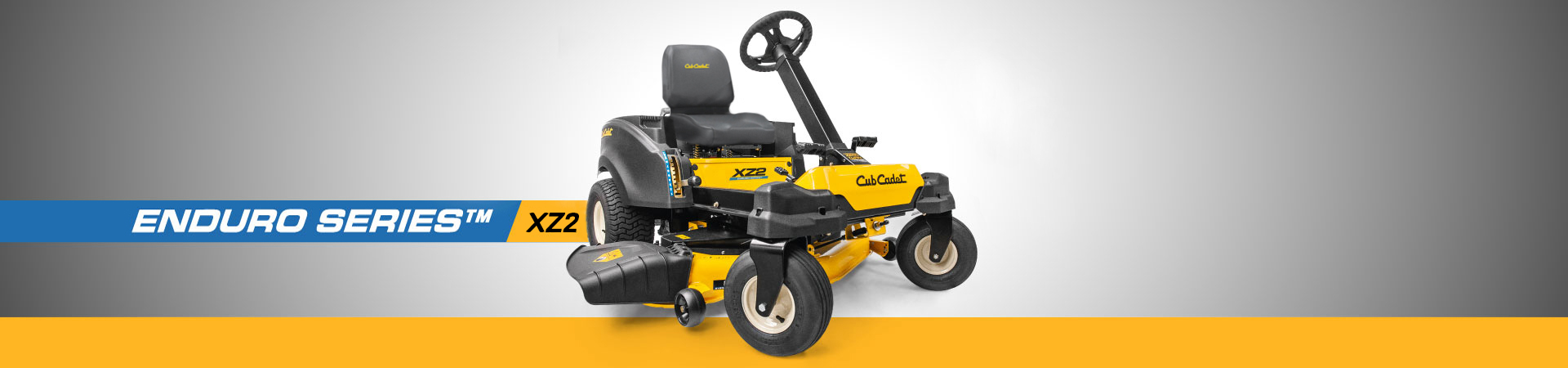

XZ2 107i

£4,349.00
details
  • Zero-Turn
  • Cutting width : 107cm (42'')
  • Transmission : Dual Hydrostatic
  • Rated power kW/min -1 :13.1 / 2,700
  • Mowing area in m 2 /h: 10,000 m²h
  • Grass bag capacity (l) : – / (19C70020100)

EAN: 4008423875478

MODEL NO : 17AWCBYS603

  • print

XZ2 107cm / 42

The XZ2 107i with steering wheel control is easy to operate in a familiar and natural way. The patented Syncro-Steer® technology, pioneered by Cub Cadet delivers true zero-turn manoeuvrability with steering wheel control over all four wheels providing unmatched stability on steep and diverse terrain - and anywhere else. The new Cub Cadet EFI engine uses up to 25% less fuel versus standard carbureted engines. It has no carburetor and requires fewer oil changes. Therefore decreasing the time and money spent on maintenance. The Cub Cadet EFI engine's improved governing system provides more usable power when harsh mowing conditions demand it. The dedicated dual hydrostatic rear-wheel transmission delivers effortless control, which means that you can expect superior performance and an enviable lawn.

SPECIFICATIONS

ENGINE XZ2 107i

Engine Cub Cadet OHV EFI
Engine displacement (cm3) 679 cm³
Rated power (kW/min-1) 13.1 / 2,700
Cylinders V-TWIN dual cylinder
Fuel tank capacity(l) 10.5 l
Lubrication Full-pressure with spin-on oil filter

DRIVE SYSTEM

Transmission Dual Hydrostatic
Speed (max) Infinitely variable
Control Dual foot pedal control
Cruise Control Standard

CUTTING SYSTEM

Mowing area (m2/h) 10,000 m²h
Cutting width / Cutting height 107cm (42'') / 38 - 100 mm
Cutting options 3-in-1 Option
Number of blades 2
Deck Engagement Electric PTO
Deck height positions 8
Deck wheels 2
Wash nozzle / mulching plug Standard / standard

DISCHARGE SYSTEM

Grass bag capacity (l)  – / (19C70020100)
Deflector  Standard

FRAME

Front bumper / – / –
Turning radius (cm) Zero cm
Wheels (front/rear) 13'' x 5'' / 18'' x 8.5''
Wheel bearings Sleeve bearings
Easy entry frame Standard

ELECTRIC

Battery 12 V / 230 CCA
Headlights
Hourmeter / Serviceminder Standard
Safety systems Operator presence, brake switch, deck clutch switch

COMFORT

Seat type High back
Seat adjustment Quick adjuster lever
Steering wheel Comfort
Tool box / 12 V plug Standard
Mow in reverse Standard
Battery charger 196-967-678

DIMENSIONS

Noise values 88 / 98 / 100
Vibration value body (K-factor) (m/s2)  1 / 0.5 m/s²
Virbration value hand-arm (K-factor) (m/s2)  5 / 1.5 m/s²
Dimensions (L / W / H) (cm)  203 / 116 / 118
Weight net (kg)  234 kg



*
