Z5 152

£13,798.80
details
  • Zero-Turn
  • Cutting width : 152cm (60'')
  • Transmission : Parker HTG 12 cc
  • Rated power kW/min -1 :17.15 / 2,500
  • Mowing area in m 2 /h: 15.000 m²/h
  • Grass bag capacity (l) : –

EAN: 4008423872415

MODEL NO : 53AIHJUV603

  • print

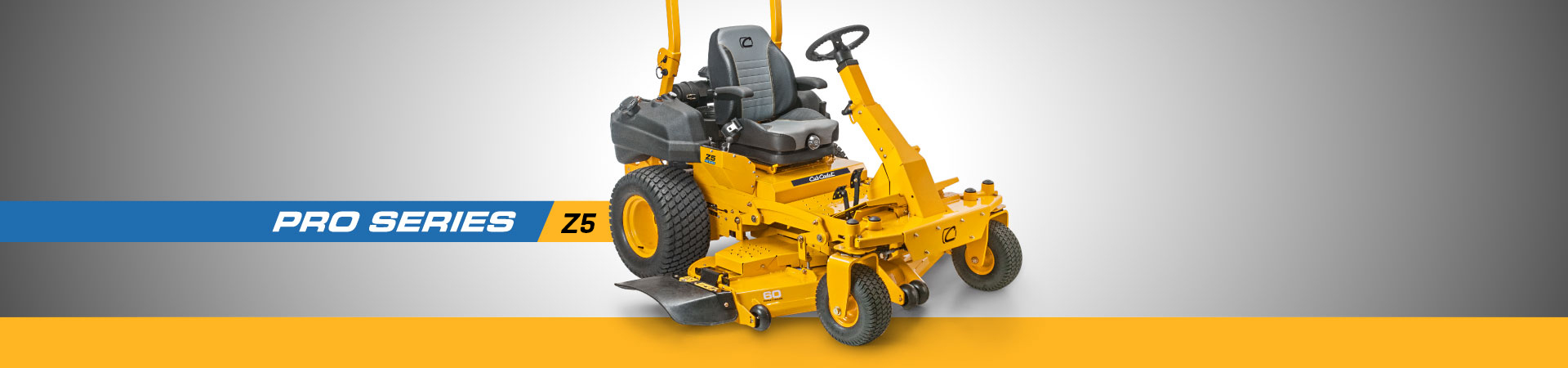

137cm / 54” Zero-Turn Mower

The New Cub Cadet Z5 is the ultimate zero-turn mower, delivering maximum efficiency and market-leading performance – the perfect combination for real professionals. The high back seat with arm rests is from the commercial vehicle industry ensuring a comfortable work place and reduces operator fatigue when cutting for long periods of time.Steering wheel control and four-wheel steering provides precision and confidence to tackle terrain other riders can’t handle. Like all Cub Cadet mowers, the Z5 is built with ultra-tough components featuring a strong and robust welded steel deck, solid and corrosion resistant e-coated frame and smooth powerful drive under all conditions. If you expect nothing but the very best from your mower, you will be impressed with the Z5, the ultimate zero-turn mower, designed for the toughest, most demanding conditions.

SPECIFICATIONS

ENGINE Z5 152

Engine Kawasaki OHV
Engine displacement (cm3) 852 cm³
Rated power (kW/min-1) 17.15 / 2,500
Cylinders V-TWIN dual cylinder
Fuel tank capacity(l) 2 x 34 l
Lubrication Full-pressure with spin-on oil filter

DRIVE SYSTEM

Transmission Parker HTG 12 cc
Speed (max) Infinitely variable
Control Dual foot pedal control
Cruise Control

CUTTING SYSTEM

Mowing area (m2/h) 15.000 m²/h
Cutting width / Cutting height 152cm (60'') / 26 - 127
Cutting options 2-in-1
Number of blades 3
Deck Engagement Electric PTO
Deck height positions 17
Deck wheels 2 + Roller
Wash nozzle / mulching plug – / Standard

DISCHARGE SYSTEM

Grass bag capacity (l)  –
Deflector  Standard

FRAME

Front bumper / – / Standard
Turning radius (cm) Zero cm
Wheels (front/rear) 15'' x 6'' / 24'' x 12''
Wheel bearings Ball bearings
Easy entry frame Standard

ELECTRIC

Battery 230 CCA
Headlights
Hourmeter / Serviceminder
Safety systems Rollover bar

COMFORT

Seat type High back with armrests, Adjustable
Seat adjustment Quick adjuster lever
Steering wheel Soft-Grip
Tool box / 12 V plug
Mow in reverse Standard
Battery charger

DIMENSIONS

Noise values 93 / 103 / 105
Vibration value body (K-factor) (m/s2)  1 / 0.5 m/s²
Virbration value hand-arm (K-factor) (m/s2)  5 / 1.5 m/s²
Dimensions (L / W / H) (cm)  – / – / –
Weight net (kg)  680 kg



*
